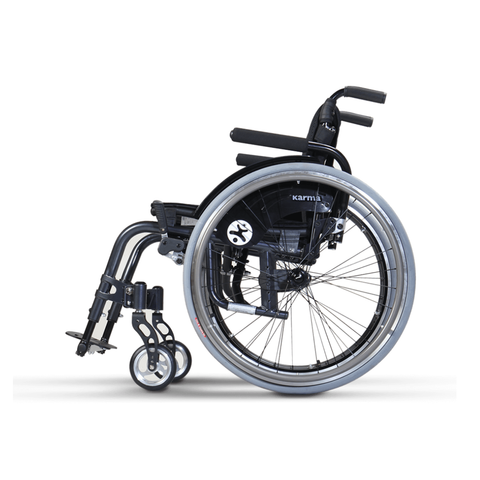

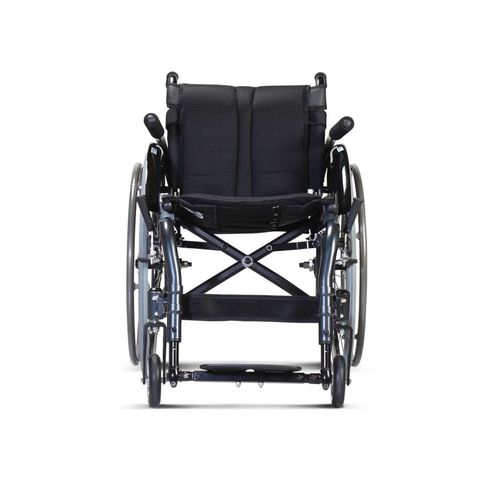

Ergo Live Self-Propelled Wheelchair
The Ergo Live Wheelchair is designed to deliver excellent handling, comfort, and adaptability for everyday mobility. Its standout feature is the adjustable rear axle position, allowing the wheelchair’s balance, stability, and manoeuvrability to be tailored to suit individual users. Combined with multiple configuration options, the chair can be set up to match changing needs and preferences.

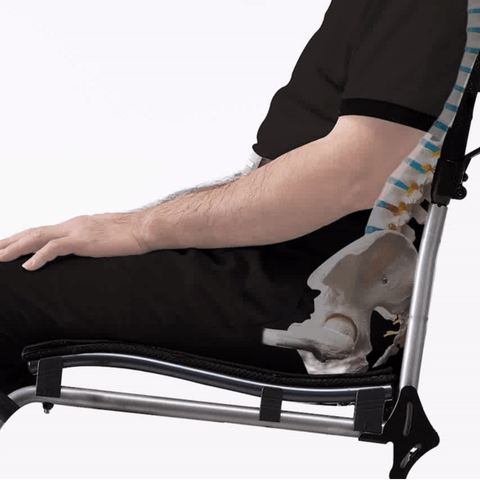

The patented S-Ergo Seating System supports posture while helping prevent forward sliding, improving comfort and promoting pressure relief during extended sitting. With adjustable seating, backrest, and wheel configurations, the Ergo Live offers a versatile and user-focused mobility solution suitable for both active users and long-term daily use.
Key Features
- Patented S-Ergo Seating System promotes pressure relief and helps maintain proper posture
- Adjustable rear axle allows optimisation of stability, manoeuvrability, and control
- Backrest angle and height adjustable, with tension straps for customised back support
- Seat height adjustable via multiple castor fork options for personalised positioning
- Quick-release rear wheels allow easy removal for transport and storage without tools
- Available in multiple seat sizes to suit individual user requirements
Sizes & Packaging
| Nominal seat width (mm/in)* | 390 / 16 |
| Nominal seat depth (mm/in)** | 415 / 16 |
| Front caster / Rear wheel size (in) | 5 / 24 |
| Backrest height (mm) | 360 ~ 455 |
| Headrest height above seat (mm) | N/A |
| Armrest to seat distance (mm) | 225 / 250 |
| Front location of armrest structure | |
| (mm) | 0 ~ 230 |
| Seat surface height at front edge (mm) | 465 |
| Footrest to seat distance (mm) | 375 ~ 435 |
| Effective seat width (mm) | 435 |
| Effective seat depth (mm) | 415 |
| Seat plane angle (X°) | 5 |
| Backrest angle (X°) | 7 / 12 / 17 |
| Seat to backrest angle (X°) | 92 / 97 / 102 |
| Leg to seat angle (X°) | 97 |
| Overall length with legrest (mm) | 920 ~ 935 |
| Overall width (mm) | 630 |
| Overall height (mm) | 810 ~ 885 |
| Folded length (mm) | 870 |
| Folded width (mm) | 310 |
| Folded height (mm) | 585 |
| Total mass (kg) | 13.3 |
| Mass of the heaviest part (kg) | 9.1 |
| Maximum user weight (kg) | 125 |
| Minimum turning radius (mm) | 665 |
| Minimum turning radius without user | |
| (mm) | 590 |
| Pivot width (mm) | 1060 |
| Static stability downhill (X°) | 14 |
| Static stability uphill (X°) |
12.5 (with anti-tippers)
|
| Static stability sideways (X°) | 13 |
| Handrim diameter (mm) | 530 |
| Horizontal location of axle (mm) | 10 |
