Hoist Oxford Presence

Brand: Joerns - View all products
SKU: HOIST OXFORD PRESENCE

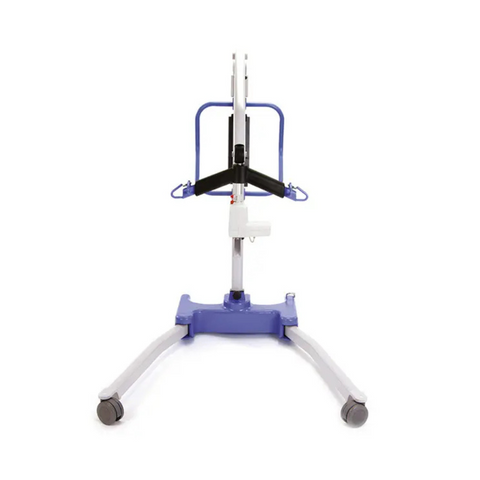

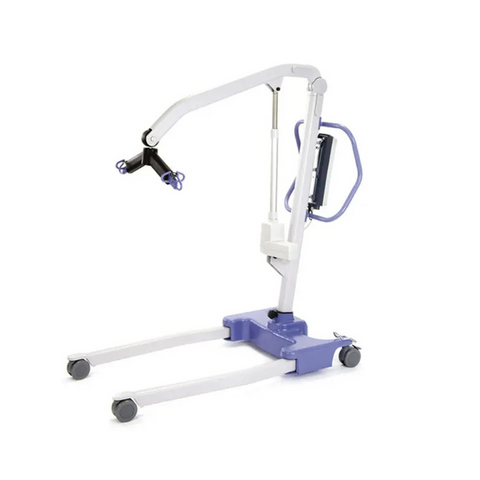

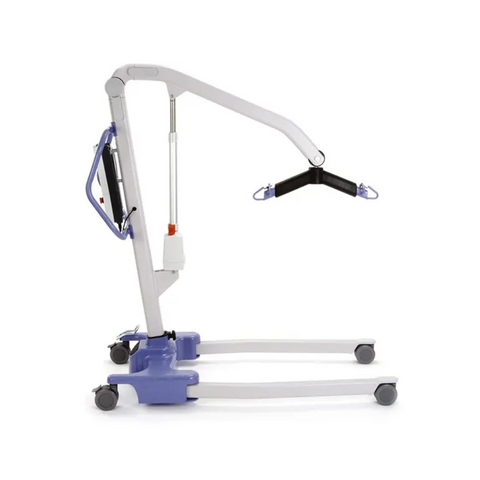

The Oxford Presence Hoist is a heavy-duty professional patient lift designed to manage a wide variety of lifting and transfer needs. Built for durability and performance, it combines strength with versatility, making it suitable for both critical and everyday transfers in care environments.

With an outstanding lifting range from 44 cm to 191 cm, the Presence ensures smooth transfers to and from the floor, bed, or higher surfaces. Its ergonomic design, powered features, and advanced safety systems provide reassurance for both patients and carers during use.

Key Features

  • Safe working load: 227 kg (35 st / 500 lbs)
  • Exceptional lifting range from 440 mm to 1910 mm
  • Smart Monitor with diagnostic and service controls as standard
  • Interchangeable spreader bar and cradle options for flexibility
  • Powered leg positioning system ensures easy access around furniture
  • Low leg model available for use with low bed frames
  • Powered cradle and digital weigh-scale options for enhanced care
  • Ergonomic design with intuitive interaction points for carers
  • Integrated safety systems provide protection for patients and carers
Size CM
Safe Working Load 227 kgs
Maximum Overall Length 146
Minimum Overall Length 140
Maximum Overall Height 206.5
Minimum Overall Height 146
Spreader Bar – Maximum Height 191
Spreader Bar – Minimum Height 43
Height at Maximum Reach 131
Reach at Maximum Height 65
Reach at Minimum Height 40
Maximum Reach (Centre of spreader bar to front of the mast) 93
Turning Radius 163
Legs Open – External Width 115
Legs Open – Internal Width 102
Legs Closed – External Width 67
Legs Closed – Internal Width 55
Overall Height of Legs 12
Overall Height of Legs (Low leg model) 5.9
Ground Clearance 3.5
Ground Clearance (Low leg model) 2
Front Twin Castors 10
Front Twin Castors (Low leg model) 5

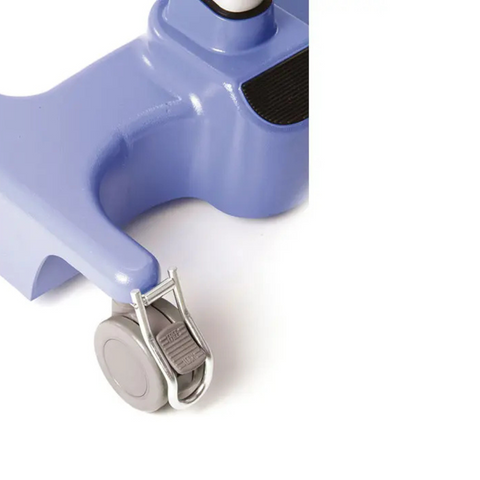

Rear Braked Castors 10
4-point Positioning Cradle – Maximum Height 155
4-point Positioning Cradle – Minimum Height (usable) 39
Mast, Base & Boom Assembly (includes 6-point spreader bar) 37.0 kg
Power Pack 3.0 kg
Total (including 6-point spreader bar) 40.0 kg
Base Assembly 20.0 kg
Mast & Boom Assembly (excluding battery) 17.0 kg
4-point Positioning Cradle (manual operation) 6.0 kg
4-point Positioning Cradle (powered operation) 9.0 kg

€7,353.30 Inc VAT
Price on application - Please contact us on 0818 911 555 for a personalized quote. enquire now
Available to Order - we will contact you with a delivery date
