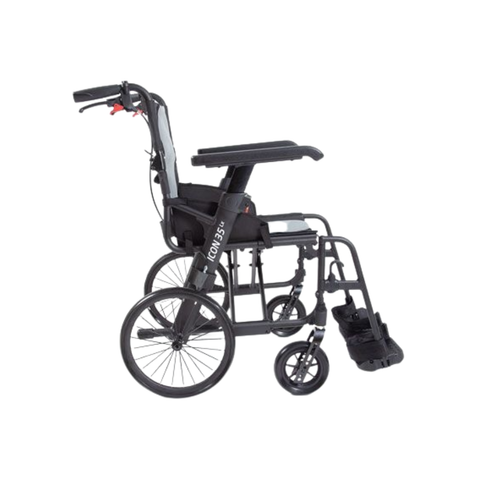

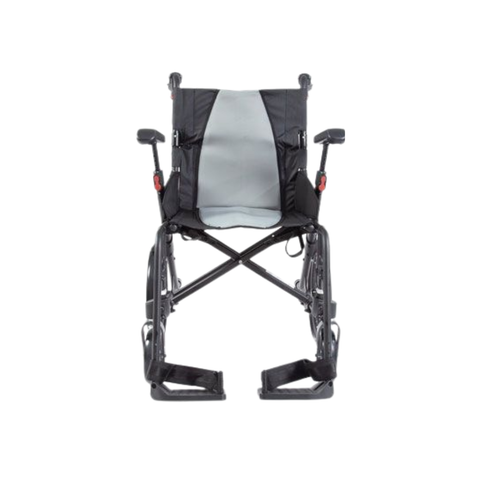

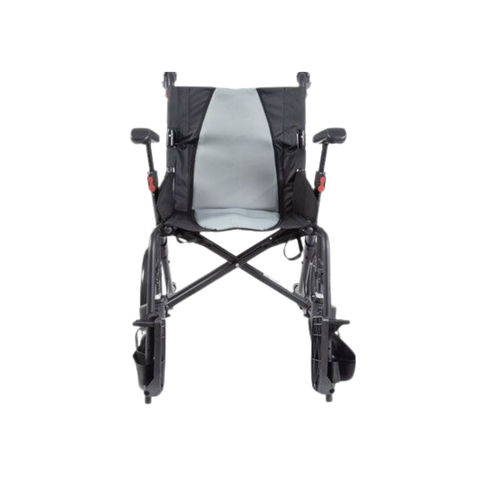

Icon 35 LX Transit Wheelchair
The Icon 35 LX Transit Wheelchair is designed to offer comfort, practicality, and ease of travel for users and carers alike. Its lightweight, folding design makes it simple to transport and store, while the ergonomic seating and adjustable features ensure a supportive and comfortable experience during use. With swing-away leg rests, stepwise braking, and anti-tip support, it provides confidence and stability whether indoors or outdoors.
Built for everyday reliability, the chair features durable construction with a 125kg user capacity and is available in three seat widths to suit individual needs. Certified to European standards, it meets the requirements of modern care environments while remaining intuitive and easy to operate.
Key Features
- Durable construction with 125kg weight capacity
- Available seat widths: 40cm, 45cm, and 50cm
- Ergonomic seat and back upholstery with high-comfort padding

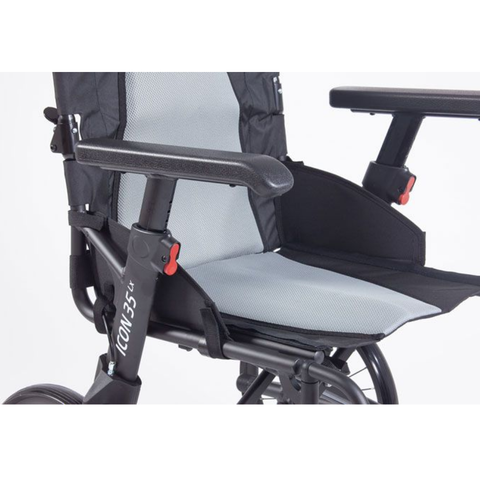

- Adjustable armrests (18–25cm) that lock securely in place
- Lightweight design from just 9.8kg
- Folding frame and half-folding back for compact storage

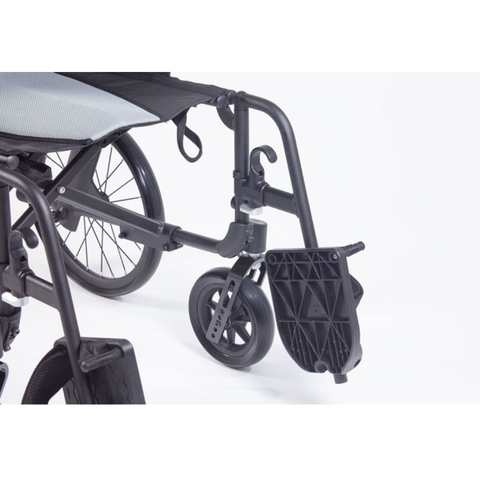

- Swing-away leg rests with release lever; legrest length 32–45cm

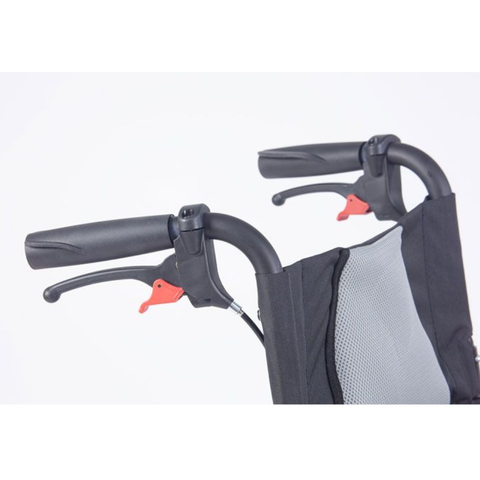

- Stepwise brake control with cable and anti-tipping aid
- Carry handle for easy transport when folded
- Removable, washable seat cover
- Suitable for indoor and outdoor use
- CE marked and compliant with EU Regulation 2017/754 (MDR)
- Conforms to standards PN-EN 12182:2005; PN-EN 12183:2010; PN-EN 1021-1:2007; PN-ISO 7176-1,3,5,7,8,15

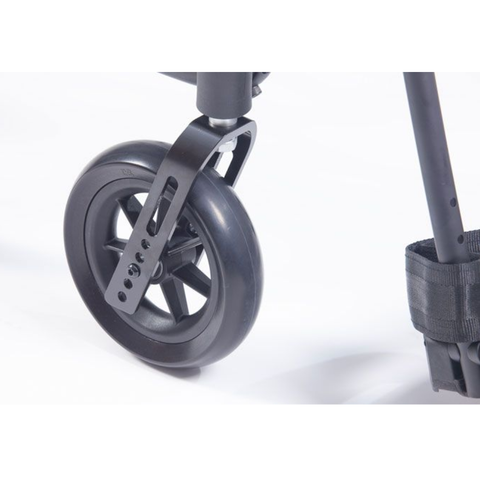

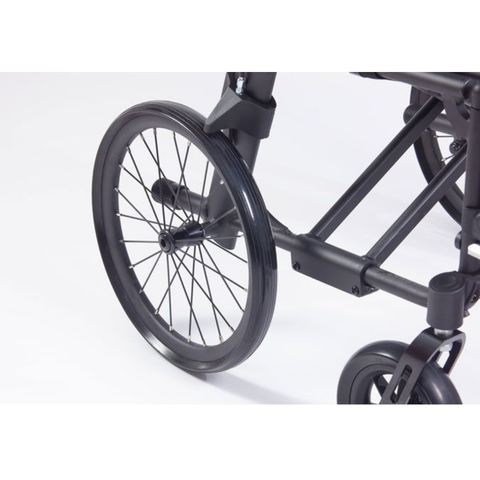

- Wheel sizes: 7" front wheels and 14" rear wheels
| Size (mm) | Small 40cm | Medium 45cm | Large 50cm |
| Length | 1030 | 1030 | 1030 |
| Lenght with no legrests | 650 | 650 | 650 |
| Width | 530 | 580 | 610 |
| Total Width | 530 | 580 | / |
| Height | 910 | 910 | 910 |
| Weight | 9.8kg | 9.8kg | 9.8kg |
| Max user weight | 115kg | 115kg | 115kg |
| Stored Dimensions | 740 x 650 x 270 | 740 x 650 x 270 | 740 x 650 x 270 |
| Seat height | / | / | 450 |
| Seat width | 400 | 450 | 500 |
| Seat depth | 400 | 400 | 400 |
| Front wheel diameter | 178 | 178 | 178 |
| Rear wheel diameter | 355 | 355 | 355 |
| Armrest height | 180 - 250 | 180 - 250 | 180 - 250 |
