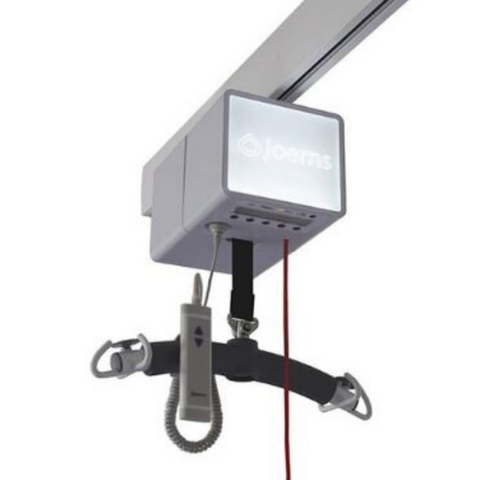

Oxford Elara Ceiling Lift Hoist
Brand: Joerns - View all products
SKU: HOIST OXFORD ELARA
No reviews
The Oxford Elara Ceiling Lift Hoist is a modern lifting solution that combines advanced functionality with contemporary design. Tested to the most stringent standards, it ensures the highest levels of safety for both patients and caregivers. Its powerful 4-way drive and illuminating features make it a versatile choice for modern care environments.
Designed to reduce disruption while maximising efficiency, the Elara offers smooth transfers and simple servicing. With a wide safe working load and multiple spreader bar options, it can accommodate a variety of patients while maintaining comfort, security, and reliability.
Key Features
- Maximum safe working load: 284 kg
- Unique Elara Chauffeur 4-wheel drive power traverse for strong in-rail traction

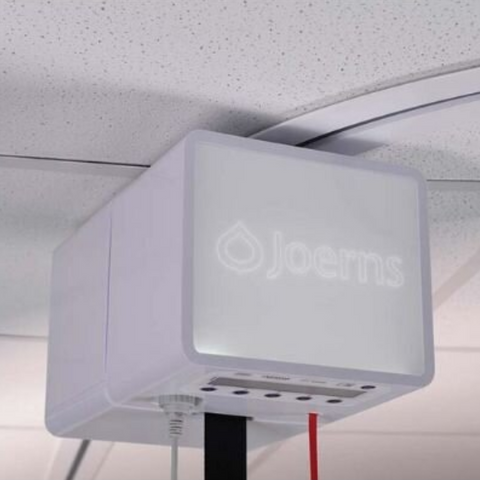

- Illuminating end panels assist caregivers while minimising disruption to patients
- Choice of spreader bars accommodates a wide range of patient shapes and sizes
- Integrated safety systems with overload protection, visual and audible alerts
- Downloadable lifetime usage data with day records for monitoring and compliance

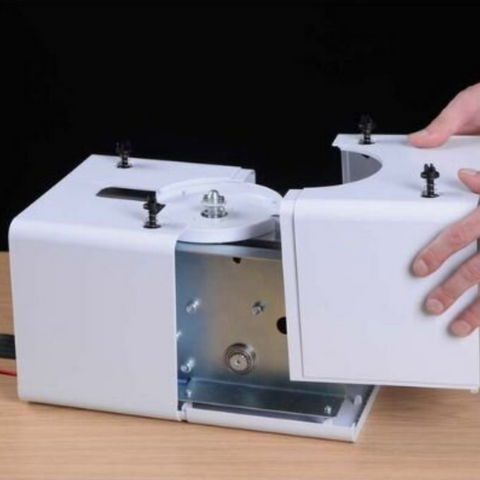

- Tool-free motor access simplifies servicing and maintenance routines
Title
Size | CM |
Safe Working Load | 284 kg (44 st) |
Weight (excluding spreader bar) | 12 kg |
Charging Time (Max) | 6 Hours |
Lifts Per Charge (80kg) | 40 |
Lifting Range | 220 |
Loaded Lifting Speed |
Up to 3.4 cm/sec
|
Chauffeur® Speed (4-way) | 15 cm/sec |
Noise Level | 63 dB |
Intended Operating Environment | +5°C to 40°C |
Ingress Protection – Hand Control | IPX4 |
Width | 31.4 |
€2,759.35
Inc VAT
