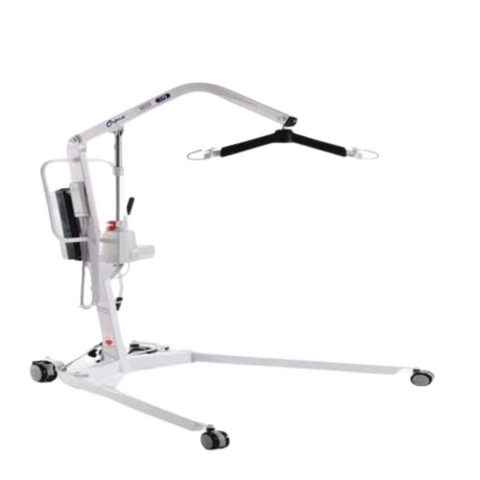

Oxford Midi 180 Hoist
The Oxford Midi 180 by Joerns has become the gold standard in homecare, offering surprising performance for a hoist of its size. The Midi is the perfect solution for both community and nursing environments, whilst being sympathetic to the space constraints it might encounter.
Key Features
- Safe working load 180kg / 28st / 397lbs.
- Smart Monitor diagnostic and service controls as standard.
- Foot pedal leg opening mechanism with latch/lock functionality.
- Electric leg option available.
- High-grade Tente castors for easy manoeuvrability.
- Choice of three spreader bar sizes.
- Detachable battery pack and desktop charger.
- Optional Class III digital weigh scale.
- Available in electric or hydraulic versions.
- Part of our disability aids range.
Size Chart
| Safe Working Load |
180kg / 28st / 397Ibs
|
| Length | 1225 mm |
| Maximum Overall Height | 1840 mm |
| Minimum Overall Height | 1240 mm |
| Maximum Spreader Bar Height | 1660 mm |
| Minimum Spreader Bar Height | 525 mm |
| Spreader Bar Height at Maximum Reach | 1060 mm |
| Spreader Bar Reach at Maximum Height | 420 mm |
| Spreader Bar Reach at Minimum Height | 440 mm |
| Maximum Reach | 656 mm |
| Turning Radius | 1235 mm |
| Legs Open - External Width | 1170 mm |
| Legs Open - Internal Width | 1070 mm |
| Legs Closed - External Width | 600 mm |
| Legs Closed - Internal Width | 540 mm |
| Overall Height of Legs | 100 mm |
| Ground Clearance | 25 mm |
| Front Twin Castors | 75 mm |
| Rear Braked Castors | 100 mm |
€2,798.50
Inc VAT
