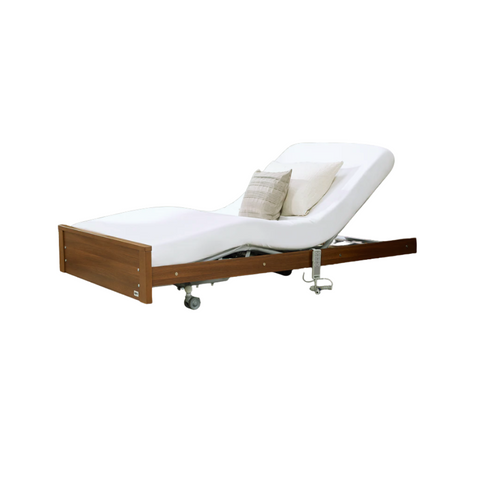

Signature Low Footboard Profiling Bed
The Signature Low Footboard is a stylish and practical choice for care and nursing at home. With its low footboard design, you’ll enjoy an unrestricted view—perfect if you like watching TV in bed or need easier access for lower body care.
This profiling bed has an extensive all-in-one height range, raising up to waist level to support carers and lowering close to floor level to reduce the risk of injury from falls. The adjustable backrest and leg rest allow you to find your most comfortable position, whether sitting up, lying flat, or easing swelling in the legs.

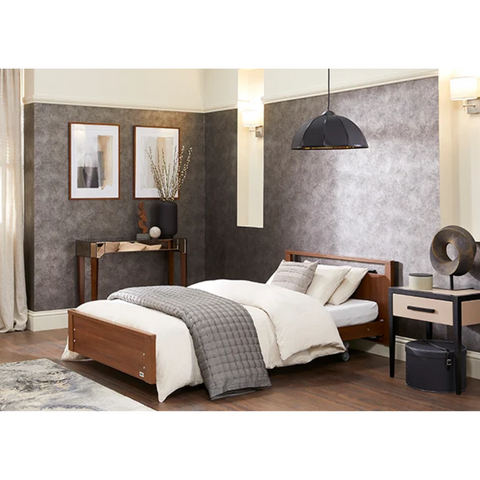

All bed functions are operated using a simple, wired handset with large buttons, making it easy to adjust at the touch of a button. Available in an Oak or Walnut finish, the Signature Low Footboard blends beautifully into the home, creating a warm, homely environment that looks more like a traditional wooden bed.
Key Features
- All-in-one height range: raises to waist level, lowers close to the floor
- Adjustable backrest for sitting comfortably
- Elevating leg rest to ease swelling and improve circulation

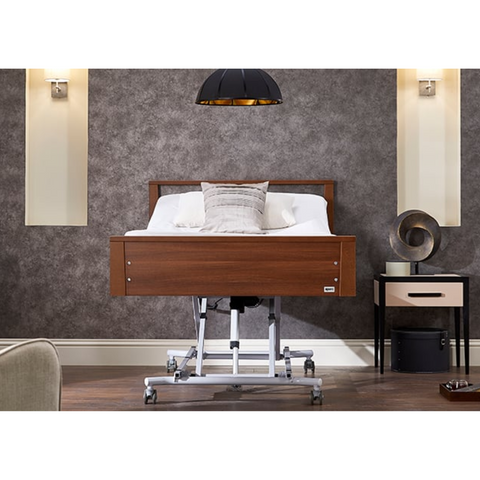

- Low footboard for an unrestricted view and easier lower body care
- Easy-to-use wired handset with large buttons
- Choice of finishes: Walnut
Size | Milimeters | Inches |
Headboard Height | 780mm | 30¾” |
External Length | 2080mm | 82" |
External Width | 1050mm | 41" |
Height to Mattress Platform | 245-730mm | 9½-28¾” |
Height Range (floor to top of mattress platform) | 245-730mm | 9½-28¾” |
External Length | 2080mm | 82" |
External Width 3ft / 90cm Single 3ft6 / 105cm Wide Single 4ft / 20cm Small Double |
1050mm 1200mm 1350mm |
41" 47” 52¾” |
External Height (in lowest position) | 780mm | 30¾” |
External Height (in highest position) | 1300mm | 51¼" |
Mattress Platform Length | 2000mm | 78¾” |
Mattress Platform Width 3ft / 90cm Single 3ft6 / 105cm Wide Single 4ft / 20cm Small Double |
900mm 1050mm 1200mm |
35½” 41½" 47¼" |
Maximum User Weight | 170kg | 26¾st |
Safe Working Load | 205kg | 32¼st |
Back Rest Length | 745mm | 29¼” |
Thigh Rest Length | 350mm | 13¾” |
Calf/Foot Rest Length | 540mm | 21¼” |
Maximum Back Rest Angle | 70º | |
Maximum Leg Rest Angle | 30º | |
Power Cord Length | 2100mm | 82¾” |
Hoist Clearance | 130mm | 5¼” |
4 Braked Twin Castors | 70mm | 2¾” |
Electric Shock Protection (DIN EN 60601-1) | Class II, Type B | |
Ingress Protection (EN 60529) | IPX4 | |
Battery for Emergencies (EN 60601-2-52) |
9V Block Battery (Alkaline Manganese type 6LR61)
|
